Bom dia, normalmente utilizo um fone de ouvido wireless para reproduzir som porém hoje ao tentar conectar duas caixinha stereo tive problemas com a reprodução do aúdio, uso principalmente o pipewire e pavucontrol e minha distro é o Artix Linux com runit, minha placa mãe é a TUF H310M.
Configuração do alsamixer:
Eu acabo por escutar um chiado quando ligo o loopback e habilito o som do microfone frontal, logo imagino que o problema não seja originado por mal contato.
Minha lista de dispositivos de som:
pactl list sinks
Sink #39
State: SUSPENDED
Name: easyeffects_sink
Description: Easy Effects Sink
Driver: PipeWire
Sample Specification: float32le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65533 / 100% / -0.00 dB, front-right: 65533 / 100% / -0.00 dB
balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: easyeffects_sink.monitor
Latency: 0 usec, configured 0 usec
Flags: DECIBEL_VOLUME LATENCY
Properties:
application.id = "com.github.wwmm.easyeffects"
node.name = "easyeffects_sink"
device.description = "Easy Effects Sink"
node.virtual = "true"
node.passive = "out"
factory.name = "support.null-audio-sink"
media.class = "Audio/Sink"
audio.position = "FL,FR"
monitor.channel-volumes = "false"
priority.session = "0"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "37"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "38"
object.serial = "39"
Formats:
pcm
Sink #88
State: SUSPENDED
Name: alsa_output.usb-Corsair_CORSAIR_VIRTUOSO_SE_Wireless_Gaming_Headset_16a3560d000600dc-00.analog-stereo
Description: CORSAIR VIRTUOSO SE Wireless Gaming Headset Analog Stereo
Driver: PipeWire
Sample Specification: s24le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65536 / 100% / 0.00 dB, front-right: 65536 / 100% / 0.00 dB
balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.usb-Corsair_CORSAIR_VIRTUOSO_SE_Wireless_Gaming_Headset_16a3560d000600dc-00.analog-stereo.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY
Properties:
alsa.card = "4"
alsa.card_name = "CORSAIR VIRTUOSO SE Wireless Ga"
alsa.class = "generic"
alsa.device = "0"
alsa.driver_name = "snd_usb_audio"
alsa.id = "USB Audio"
alsa.long_card_name = "Corsair CORSAIR VIRTUOSO SE Wireless Ga at usb-0000:00:14.0-8, full speed"
alsa.name = "USB Audio"
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "Corsair CORSAIR VIRTUOSO SE Wireless Ga at usb-0000:00:14.0-8, full speed"
api.alsa.card.name = "CORSAIR VIRTUOSO SE Wireless Ga"
api.alsa.path = "front:4"
api.alsa.pcm.card = "4"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "3"
device.api = "alsa"
device.class = "sound"
device.id = "71"
device.profile.description = "Analog Stereo"
device.profile.name = "analog-stereo"
device.routes = "1"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "CORSAIR VIRTUOSO SE Wireless Gaming Headset"
node.name = "alsa_output.usb-Corsair_CORSAIR_VIRTUOSO_SE_Wireless_Gaming_Headset_16a3560d000600dc-00.analog-stereo"
node.nick = "CORSAIR VIRTUOSO SE Wireless Ga"
node.pause-on-idle = "false"
object.path = "alsa:pcm:4:front:4:playback"
priority.driver = "1009"
priority.session = "1009"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "34"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "86"
object.serial = "88"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "4"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio4"
device.bus = "usb"
device.bus-id = "usb-Corsair_CORSAIR_VIRTUOSO_SE_Wireless_Gaming_Headset_16a3560d000600dc-00"
device.bus_path = "pci-0000:00:14.0-usb-0:8:1.0"
device.enum.api = "udev"
device.form_factor = "headset"
device.icon_name = "audio-headset-analog-usb"
device.name = "alsa_card.usb-Corsair_CORSAIR_VIRTUOSO_SE_Wireless_Gaming_Headset_16a3560d000600dc-00"
device.nick = "CORSAIR VIRTUOSO SE Wireless Ga"
device.plugged.usec = "5013833"
device.product.id = "0x0a40"
device.product.name = "CORSAIR VIRTUOSO SE Wireless Gaming Headset"
device.serial = "Corsair_CORSAIR_VIRTUOSO_SE_Wireless_Gaming_Headset_16a3560d000600dc"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb1/1-8/1-8:1.0/sound/card4"
device.vendor.id = "0x1b1c"
device.vendor.name = "Corsair"
device.string = "4"
Ports:
analog-output-headphones: Headphones (type: Headphones, priority: 9900, availability unknown)
Active Port: analog-output-headphones
Formats:
pcm
Sink #91
State: RUNNING
Name: alsa_output.pci-0000_00_1f.3.iec958-stereo
Description: Built-in Audio Digital Stereo (IEC958)
Driver: PipeWire
Sample Specification: s32le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65536 / 100% / 0.00 dB, front-right: 65536 / 100% / 0.00 dB
balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.pci-0000_00_1f.3.iec958-stereo.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE HW_MUTE_CTRL DECIBEL_VOLUME LATENCY SET_FORMATS
Properties:
alsa.card = "0"
alsa.card_name = "HDA Intel PCH"
alsa.class = "generic"
alsa.device = "1"
alsa.driver_name = "snd_hda_intel"
alsa.id = "ALC887-VD Digital"
alsa.long_card_name = "HDA Intel PCH at 0xf7140000 irq 129"
alsa.name = "ALC887-VD Digital"
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "HDA Intel PCH at 0xf7140000 irq 129"
api.alsa.card.name = "HDA Intel PCH"
api.alsa.path = "iec958:0"
api.alsa.pcm.card = "0"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "6"
device.api = "alsa"
device.class = "sound"
device.id = "72"
device.profile.description = "Digital Stereo (IEC958)"
device.profile.name = "iec958-stereo"
device.routes = "1"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "Built-in Audio"
node.name = "alsa_output.pci-0000_00_1f.3.iec958-stereo"
node.nick = "ALC887-VD Digital"
node.pause-on-idle = "false"
object.path = "alsa:pcm:0:iec958:0:playback"
priority.driver = "736"
priority.session = "736"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "34"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "89"
object.serial = "91"
node.max-latency = "16384/48000"
api.alsa.period-size = "1024"
api.alsa.period-num = "32"
api.alsa.headroom = "0"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "0"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio0"
device.bus = "pci"
device.bus_path = "pci-0000:00:1f.3"
device.enum.api = "udev"
device.form_factor = "internal"
device.icon_name = "audio-card-analog-pci"
device.name = "alsa_card.pci-0000_00_1f.3"
device.nick = "HDA Intel PCH"
device.plugged.usec = "3327514"
device.product.id = "0xa2f0"
device.product.name = "200 Series PCH HD Audio"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/sound/card0"
device.vendor.id = "0x8086"
device.vendor.name = "Intel Corporation"
device.string = "0"
Ports:
iec958-stereo-output: Digital Output (S/PDIF) (type: SPDIF, priority: 0, availability unknown)
Active Port: iec958-stereo-output
Formats:
pcm
dts-iec61937, format.rate = "{ \"min\": 32000, \"max\": 192000 }"
ac3-iec61937, format.rate = "{ \"min\": 32000, \"max\": 192000 }"
mpeg-iec61937, format.rate = "{ \"min\": 32000, \"max\": 192000 }"
mpeg2-aac-iec61937, format.rate = "{ \"min\": 32000, \"max\": 192000 }"
eac3-iec61937, format.rate = "{ \"min\": 32000, \"max\": 192000 }"

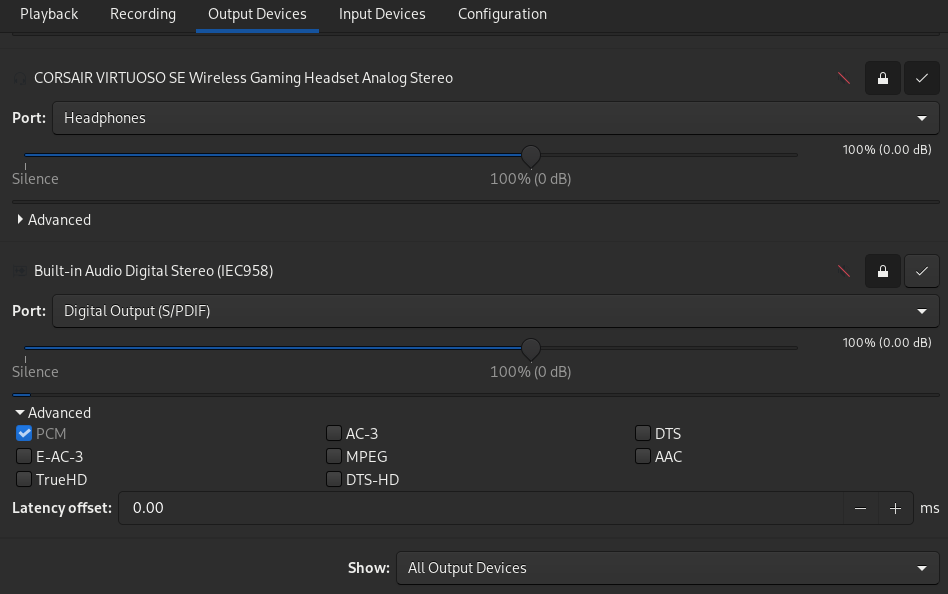

Configuração do pavucontrol:
Alguém consegue me ajudar a solucionar o problema por favor, agradeço desde já!
